How to Integrate DesignWise with Robot Framework

What you'll learn
- Brief introduction to Robot Framework
- Creation of Robot scripts in DesignWise
- Comparison of coverage and execution metrics

In the "How to Optimize Data-driven Automation with DesignWise" tutorial, we made a quick note that the efficient script-based approach is also possible in DesignWise. So, we wanted to explore that topic more and give the spotlight to integrating DesignWise with Robot Framework.

Robot Framework is an open-source test automation framework for acceptance testing and acceptance test-driven development. It follows different test case styles − keyword-driven, behaviour-driven, and data-driven − for writing test cases.

Some of the key Robot Framework advantages include ease of installation and use, good support for both external libraries and built-in/custom keywords, and more readable & maintainable test cases.

Overview

One of the most common concerns we hear from clients is:

“Our current tests are good enough. Why invest the time and resources in adopting the DesignWise methodology if it doesn’t move the needle?”

That may be true, but we don’t have to guess - DesignWise Analysis capabilities allow us to make a pretty accurate comparison (you can learn more in the "DesignWise Tests are Objectively Superior" tutorial from the "What is DesignWise?" section). For this tutorial, we will use 2 test suites created for the same requirement/coverage goal:

  • "DWBookingTests", representing the optimized output from DesignWise with 15 tests;
  • "TypicalBookingTests", representing the manually designed suite with 33 tests (based on our experience, it shows an example of a "pretty good job" for the manual effort type).

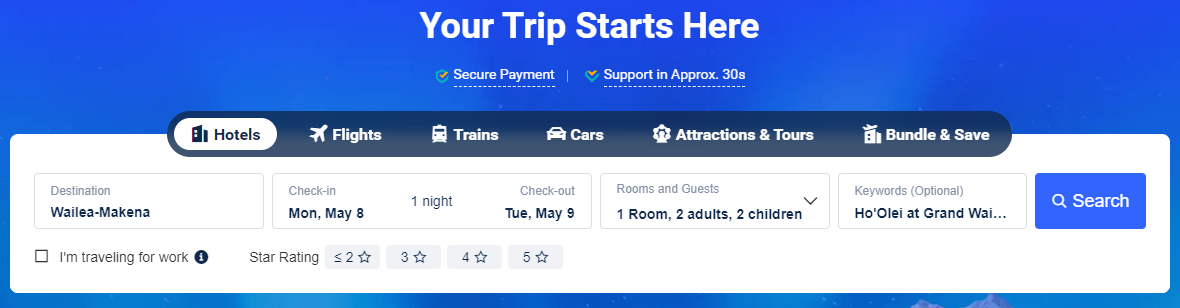

The requirement is to provide hotel availability options for the given reservation details at https://www.trip.com/. We check this by validating that clicking the "Search" button successfully leads to the "Results" page (by "properties found" page content).


We will first describe the integration steps for "DWBookingTests" and then compare the coverage and execution metrics between the two.

Prerequisites

In order to run this tutorial, you need to have Python and Robot Framework installed.

Integrating DesignWise with Robot Framework

Build a DesignWise Model

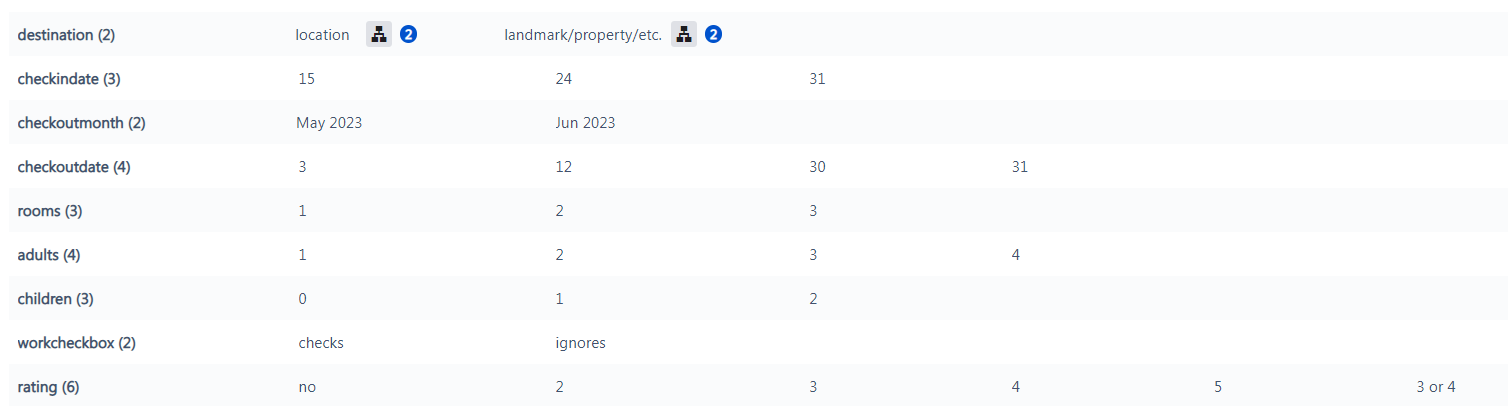

It is built using a fairly straightforward approach of a parameter per UI field with a couple things to note:

  • For the Destination field, we are more interested in classes of search terms, less in the syntax rules. So, we use 2 Values to represent categories, then add specific search terms using Value Expansions.

  • The date-related parameters will need to be updated within the model to maintain execution accuracy. The screenshot represents the model state at the time of publication. Alternatively, you can consider using abstract values in DesignWise ("this month", "next month", "last day of the month", etc.), then let automation determine the specifics.

  • For conditional steps, Robot Framework allows to use any syntax as the trigger, so we can adjust the value naming to match the context - "checks" for the checkbox, numbers for the rating stars. Neither wording has any special function within DesignWise itself.

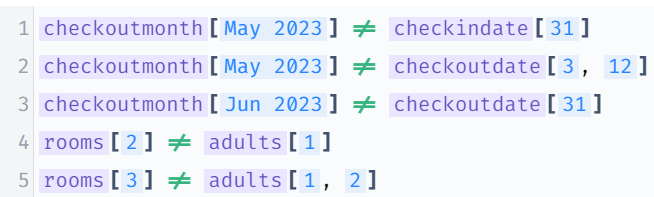

Constraints should account for the date logic and the room-vs-people limitations:

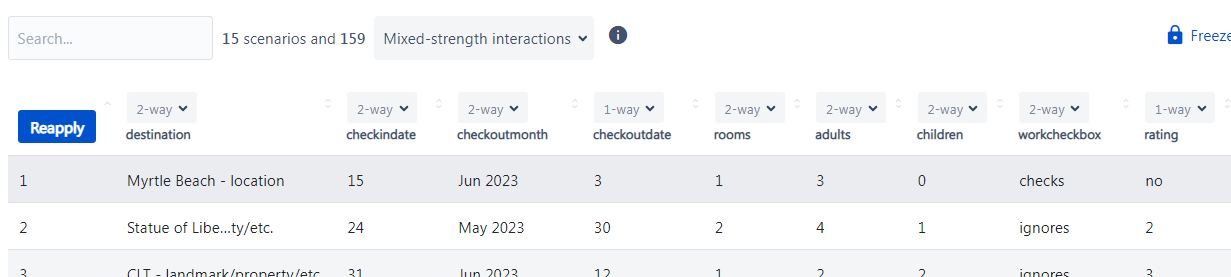

For scenario generation, we assume the exact checkout date and the ratings are not as important, so we switch them to 1-way:

Create a Robot script

The key advantage at this step is that a user creates & maintains a single data-driven template in DesignWise Automate and exports as many tests as there are rows on the DesignWise Scenarios screen, with all the parameter values replaced inline. That combines efficiency and clarity/ease of use.

DesignWise Automate Script

*** Settings ***
Library         	BuiltIn
Library			Dialogs
Library         	SeleniumLibrary


*** Variables ***
${BROWSER}           			headlesschrome
${DELAY}             			1
${START URL}         			https://www.trip.com/
${DESTINATION TXTFIELD}			//*[@id="hotels-destination"]
${CHECKIN BTN}					//*[@id="searchBoxCon"]/div/div/ul/li[2]/div/div[1]


${ROOMSPLUS BTN}				//*[@id="searchBoxCon"]/div/div/ul/li[3]/div/div[3]/div[1]/div/span[3]
${ADULTSPLUS BTN}				//*[@id="searchBoxCon"]/div/div/ul/li[3]/div/div[3]/div[2]/div/span[3]
${CHILDRENPLUS BTN}				//*[@id="searchBoxCon"]/div/div/ul/li[3]/div/div[3]/div[3]/div/span[3]
${CHILDRENNAGE DIV}				//*[@id="searchBoxCon"]/div/div/ul/li[3]/div/div[3]/div[4]/div
${CHILD1AGE DROPDOWN}			//*[@id="searchBoxCon"]/div/div/ul/li[3]/div/div[3]/div[4]/div[1]/select
${CHILD2AGE DROPDOWN}			//*[@id="searchBoxCon"]/div/div/ul/li[3]/div/div[3]/div[4]/div[2]/select
${DONE1 BTN}					//*[@id="searchBoxCon"]/div/div/ul/li[3]/div/div[3]/div[4]/span
${DONE2 BTN}					//*[@id="searchBoxCon"]/div/div/ul/li[3]/div/div[3]/div[5]/span


${WORKTRAVEL CHECKBOX}			//*[@id="searchBoxCon"]/div/div/div/div[1]/div[1]


${SEARCH BTN}		 			//*[@id="searchBoxCon"]/div/div/ul/li[5]/div




*** Test Cases ***
Valid Booking Requests_TC<Test Case>_for <destination> with <rooms> rooms and <adults> adults
    [Tags]      TAC-242
    Given browser is opened to start page
    When user selects destination "<destination>"
	And user selects May 2023 "<checkindate>" check-in date and "<checkoutmonth>" "<checkoutdate>" check-out date
	And user selects "<rooms>" rooms for "<adults>" adults and "<children>" children
	And user "<workcheckbox>" work checkbox and selects "<rating>" star rating
    Then clicking "Search" button generates results successfully


*** Keywords ***
Browser is opened to start page
	Open Browser    ${START URL}    ${BROWSER}		options=add_experimental_option("excludeSwitches", ["enable-logging"])
	Set Window Size			1920	1080
	Set Selenium Speed      ${DELAY}
	Page Should Contain		Your Trip Starts Here

user selects destination "${destination}"
	Input Text		${DESTINATION TXTFIELD}		${destination}

user selects May 2023 "${checkindate}" check-in date and "${checkoutmonth}" "${checkoutdate}" check-out date
	Click Element	${CHECKIN BTN}


	Click Element	//div[@class = 'c-calendar-month__title' and text() = 'May 2023']/following-sibling::div//span[@class = 'day' and text() = '${checkindate}']
	Click Element	//div[@class = 'c-calendar-month__title' and text() = '${checkoutmonth}']/following-sibling::div//span[@class = 'day' and text() = '${checkoutdate}']


user selects "${rooms}" rooms for "${adults}" adults and "${children}" children
	Sleep 	2s
	Run Keyword If	'${rooms}' == '2'		Click Element	${ROOMSPLUS BTN}
	Run Keyword If	'${rooms}' == '3'		Double Click Element	${ROOMSPLUS BTN}

	Run Keyword If	'${adults}' == '3' and '${rooms}' in ['1','2']		Click Element	${ADULTSPLUS BTN}
	Run Keyword If	'${adults}' == '4' and '${rooms}' in ['1','2']		Double Click Element	${ADULTSPLUS BTN}
	Run Keyword If	'${adults}' == '4' and '${rooms}' == '3' 			Click Element	${ADULTSPLUS BTN}

	Run Keyword If	'${children}' == '1'	Click Element	${CHILDRENPLUS BTN}
	Run Keyword If	'${children}' == '1'	Select From List By Value	${CHILD1AGE DROPDOWN}	12

	Run Keyword If	'${children}' == '2'	Double Click Element	${CHILDRENPLUS BTN}
	Run Keyword If	'${children}' == '2'	Select From List By Value	${CHILD1AGE DROPDOWN}	<1
	Run Keyword If	'${children}' == '2'	Select From List By Value	${CHILD2AGE DROPDOWN}	17

	Run Keyword If	'${children}' == '0'	Click Element	${DONE1 BTN}
	Run Keyword If	'${children}' != '0'	Click Element	${DONE2 BTN}


user "${workcheckbox}" work checkbox and selects "${rating}" star rating
	Run Keyword If	'${workcheckbox}' == 'checks'			Click Element	${WORKTRAVEL CHECKBOX}
	Run Keyword If	'${rating}' in ['2', '3', '4', '5']		Click Element	//*[@id="searchBoxCon"]/div/div/div/div[2]/span[${rating}]
	Run Keyword If	'${rating}' == '3 or 4'					Click Element	//*[@id="searchBoxCon"]/div/div/div/div[2]/span[3]
	Run Keyword If	'${rating}' == '3 or 4'					Click Element	//*[@id="searchBoxCon"]/div/div/div/div[2]/span[4]


clicking "Search" button generates results successfully
	Click Element			${SEARCH BTN}
	Page Should Contain		properties found
	Close Browser

Settings and Variables are defined similarly to any other Robot script. In the Test Cases section, there are a couple of points to highlight:

Test Cases section

*** Test Cases ***
Valid Booking Requests_TC<Test Case>_for <destination> with <rooms> rooms and <adults> adults
[Tags]      TAC-242
    	Given browser is opened to start page
    	When user selects destination "<destination>"
	And user selects May 2023 "<checkindate>" check-in date and "<checkoutmonth>" "<checkoutdate>" check-out date
	And user selects "<rooms>" rooms for "<adults>" adults and "<children>" children
	And user "<workcheckbox>" work checkbox and selects "<rating>" star rating
    	Then clicking "Search" button generates results successfully
  • DesignWise only supports the Gherkin style of Robot scripting.
  • Requirement linking can be handled via Tags.
  • As in other DesignWise Scripting examples, the steps are parameterized in order to connect to the Scenarios table (e.g. "<destination>").

In the Keywords section, there are typically 3 ways of handling DesignWise parameters:

1. Direct argument

user selects destination "${destination}"
	Input Text		${DESTINATION TXTFIELD}		${destination}

2. Part of XPath

Click Element	//div[@class = 'c-calendar-month__title' and text() =
'${checkoutmonth}']/following-sibling::div//span[@class = 'day' and text() = '${checkoutdate}']

3. Part of condition (in this example, the age of children ("12") was not important enough to be a parameter/value expansion, so it's hardcoded directly in the script)

Run Keyword If	'${children}' == '1'	Click Element	${CHILDRENPLUS BTN}
Run Keyword If	'${children}' == '1'	Select From List By Value	${CHILD1AGE DROPDOWN}	12

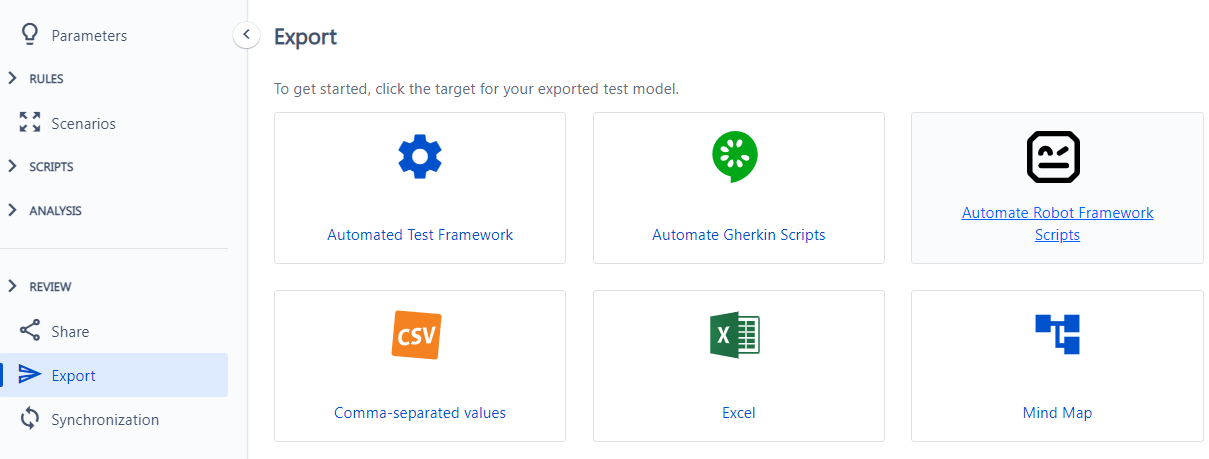

Once the script is ready, we will export it into the Robot format:

You can choose to leverage your own IDE for the template writing (to benefit from IntelliSense, etc.) then copy it into DesignWise for the export process.

Execute and import results

We can run the tests from the command line, specifying the report name and format:

robot -d reports  --output DWDemoReport.xml  DWBookingTests.robot

If we choose to run them in parallel, we can install Pabot and utilize the following command:

pabot --testlevelsplit -d reports --output DWDemoReport.xml  DWBookingTests.robot

Once the script completes the execution, we can import results into your test management tool of choice.

At the time of the article, one scenario in "DWBookingTests" fails because the UI error tooltip appears about the maximum stay duration of 31 days. Before the selections, that limitation doesn't seem to be noted anywhere.

This could be an example of the execution feedback loop for combinatorial test design: we will often exercise the combinations that haven't been explicitly mentioned in requirements. If the 31-day limit hasn't been caught during the collaborative model creation, then, based on the execution failure, we would confirm the expected behavior and, if the error is valid,

  • Add the constraint to the DesignWise model between checkindate[15,24] and checkoutdate[30, 31] and/or
  • Replace the value lists to focus more on the valid range.

A few scenarios in "TypicalBookingTests" fail for the same reason.

Comparison and Conclusion

Here are the final versions of both suites:

Based on the corresponding execution reports, we can compare the time:




~15 minutes for the DesignWise suite vs ~27 minutes for the manually designed suite without parallelization (~40 seconds difference with parallelization). This doesn't account for the much faster time to create the DesignWise test suite.

With the help of DesignWise analysis capabilities, we can compare interaction coverage - 100% for the DesignWise suite vs 84.9% for the manually designed suite after 15 tests (96.8% for the manually designed suite after all 33 tests).

And, while harder to estimate, the increase in script maintenance efficiency (1 data-driven template in DesignWise vs individual scripts in typical approach) is important to keep in mind.

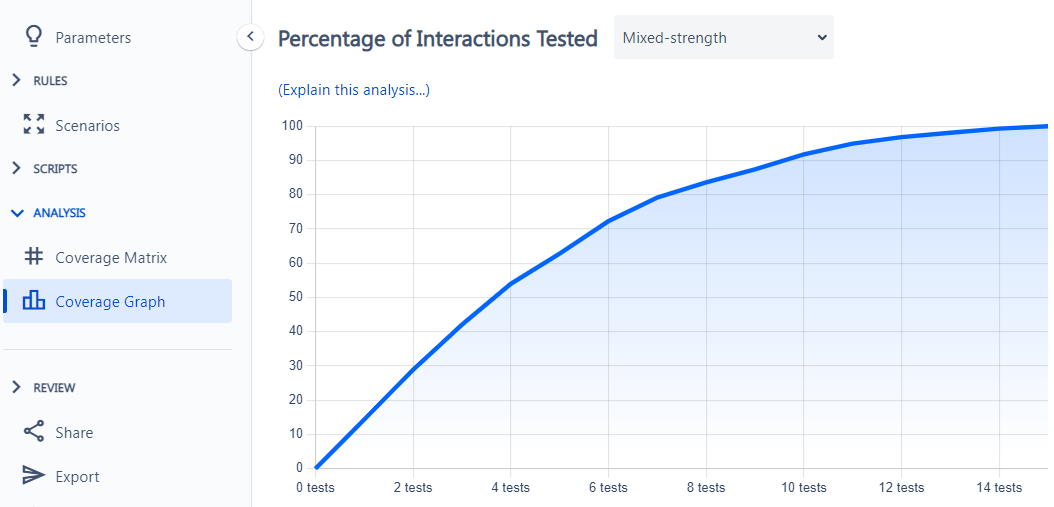

Coverage graph for the "Optimized" suite:

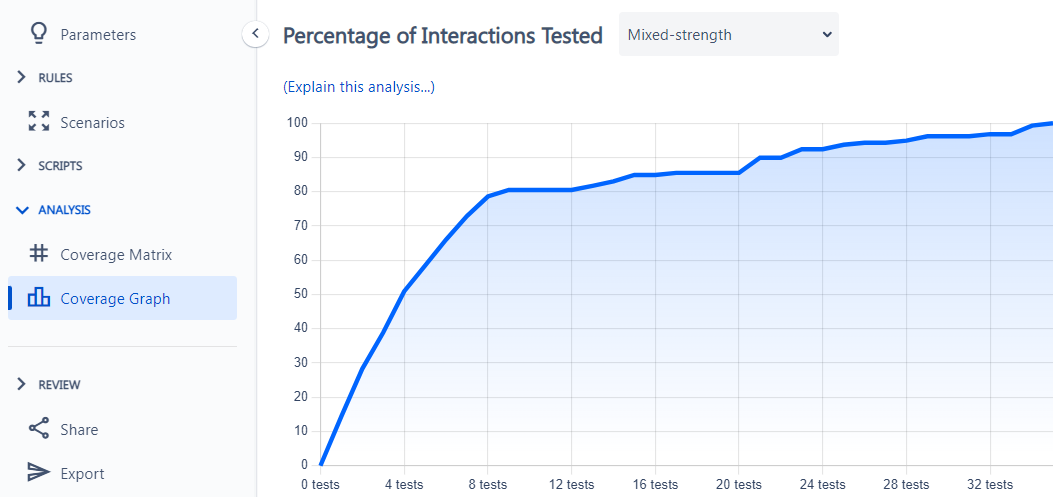

Coverage graph for the "Typical" suite. Notice that the horizontal axis:

1) is on a different scale, which makes the shape look more accelerated than the one above (while the actual percentages are lower on a test-by-test basis);

2) goes beyond 33 as DesignWise has to complete the mixed-strength coverage goal.

Tips

  • As mentioned above, this tutorial demonstrates the approach where "complete" Robot tests in Gherkin style are generated from DesignWise. A data-driven implementation similar to the Playwright/Cypress tutorial is also possible via a CSV/pipe-delimited data table exported from the DesignWise Scenarios screen + the Test Template in RF (or using a specialized library).
  • For simplicity of the example, all executable code is in 1 file. You can split it into Resource.robot and Booking.robot, if desired.
  • If the desired algorithm goal is 2-way, not mixed-strength, then Coverage Matrix can be used to review the specific pairwise gaps in addition to the aggregate coverage percentage.
